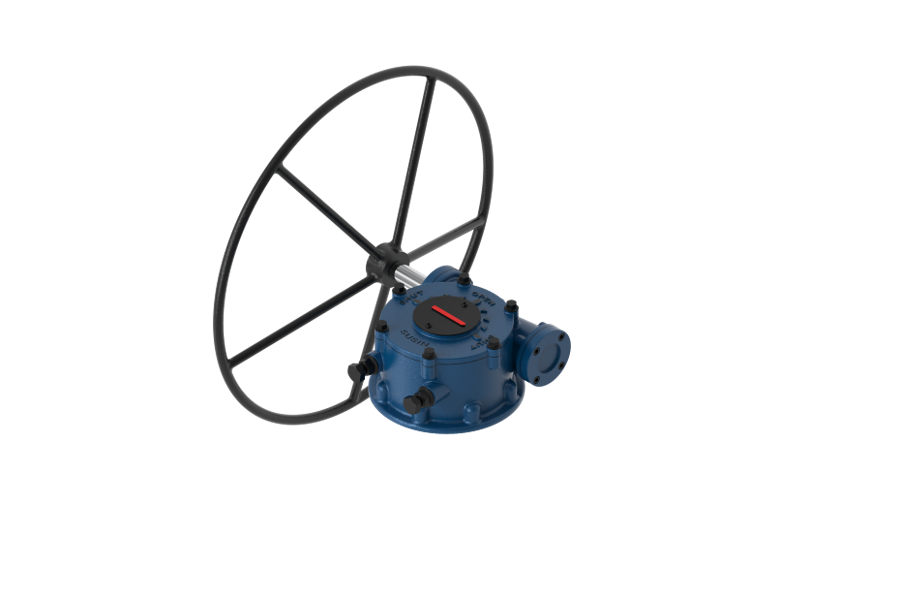

Mechanical Actuator - MAW-025
4.5
Susin Technologies Private Limited

MAW Series gear box is rocky with robust design, industrial grade products, manufactured with cast Iron housing and components.

Specifications

Gear Ratio

30:1

Hand Wheel Dia (mm)

200

Input Torque (Nm)

18.26

Mechanical Advantage

7.00

NO of Turns

9

Option

F05

Output Torque (Nm)

250

Rim Pull Effort (KG)

63.78

Standard

F07

Valve Mounting Specification

Standard

Warranty Info

Return Policy Info

Warranty Information

This product comes with a 12-month standard warranty from the date of dispatch, covering manufacturing defects only. The warranty ensures reliable performance when the product is installed, operated, and maintained according to the recommended guidelines. Any defects arising from material or workmanship issues during the warranty period will be repaired or replaced at our discretion. The warranty does not cover damages caused by misuse, improper installation, unauthorized modifications, or normal wear and tear. Electrical surges, external impact, and environmental damage are also excluded from warranty coverage. To raise a warranty claim, customers must provide the purchase invoice and product serial number for verification. All warranty claims are subject to inspection and approval by our technical team.

What is Covered
  • Manufacturing defects
  • Functional issues under normal operating conditions
  • Component failure due to material or workmanship defects
Warranty Claim Process

To raise a warranty claim, please contact our support team with a copy of the purchase invoice and the product serial number. Ensure that the product is used under recommended operating conditions as specified in the manual. Our technical team will review the claim and verify warranty eligibility. Once approved, repair or replacement will be provided as per warranty terms. Warranty coverage does not apply to damage caused by misuse, improper installation, or unauthorized modifications.

Returns are accepted only for products that are damaged, defective, or incorrectly supplied at the time of delivery. Customers must notify our support team within 7 days of receiving the product with clear photos or videos as evidence.

Returned items must be unused, uninstalled, and in their original packaging, including all accessories, manuals, and labels. Products that show signs of use, installation, or modification are not eligible for return.

Customized, made-to-order, or special-order products are non-returnable unless there is a manufacturing defect. Once the return request is approved, our team will provide instructions for return pickup or shipping.

After inspection and approval, eligible returns will be processed as a replacement or credit note, as applicable.

Created: 13 May 2026, 02:29 PM UTC+00:00

Updated: 15 May 2026, 10:57 AM UTC+00:00

MAW Series Gear Boxes are suitable for all rotary types of valves like Ball Valve, Butterfly Valves and Plug Valves and Dampers. Also, it is highly suitable for all general-purpose Industries as well as chemical, power, HVAC, and waterworks industries. hand wheels are available in a variety of sizes for smooth and easy operation.

Several options such as limit switch, electrical actuator can be easily mounted on site without any machining due to integration of all necessary incorporated with housing.

MAW Series Catalog
PDF

MAW Datasheet
PDF

MAW080 GAD
PDF

MAW025
